The all-rounder – for libraries and offices

The ARthek shelving system catches the eye with its high-quality, particularly stable outer frame. A outer frame made of tubular steel creates a free-standing, reliably constructed base unit that transforms ARthek into a versatile design element. The frame shelving system is a unique alternative to other centre post systems such as the Mediathek, especially for libraries that prioritise the attractive presentation of books and equipment. Zambelli also provides a range of accessories that is specially adapted to the needs of libraries.

assets/images/e/Campus_Westend_8_bear-33feeb02.jpg

ARthek.

  • For libraries
  • Robust frame shelving system
  • Versatile design
  • High stability due to steel tube outer frame
  • Individual design and panelling with many different materials
  • Integration of acoustic elements
  • Shelf thickness 1.25 mm
  • Metal and wooden shelves
  • Available with metal, wooden and glass doors
  • Adjustable shelves in increments of 15 mm without tools
  • Powder coating available in all RAL colours
  • Powder coating ensures that the books do not slide, even when moving the shelves
  • Side shelf enclosure
  • Stationary or movable as compact shelving system (can also be retrofitted)
  • Shelf carrying capacity: 70 kg (reinforcements for higher carrying capacity per shelf); shelf unit: 600 kg
  • Furnishing and accessories programme tailored to libraries and offices



Shelving system. Simple, tool-free installation of shelves.

assets/images/4/ARthek_Schritt1_20101005_0191-c9777ddd.jpg

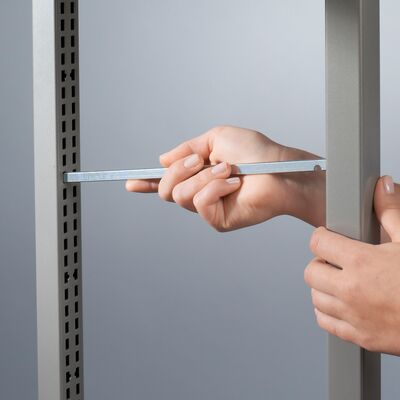

Step 1:Simply hang the two bar supports at the desired height in the frame slot grid of the shelf posts. Marking lugs are included as positioning aids in steps of six.
assets/images/8/ARthek_Schritt2_20101005_0197-3b1a2f6e.jpg
Step 2:Insert the supplied support plates on the left and right of the shelf.
assets/images/8/ARthek_Schritt3_20101005_0195-a99cf093.jpg

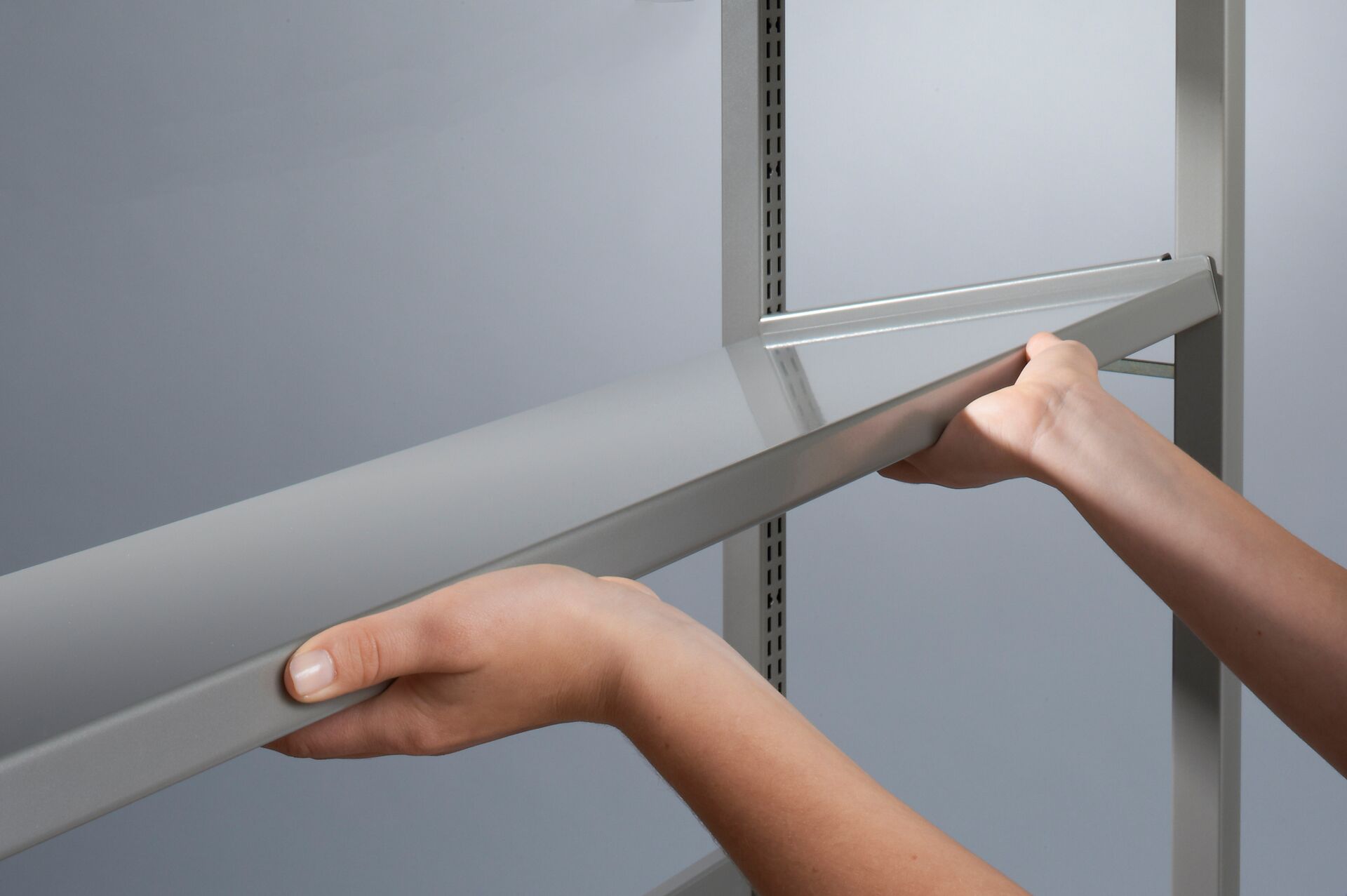

Step 3:Insert the shelf into the unit by placing the shelf at an angle on the rear end of the support plates and snap it into the bar supports. The shelf has no direct connection to the shelf post.
