The use of gutter hooks with sandwich panels

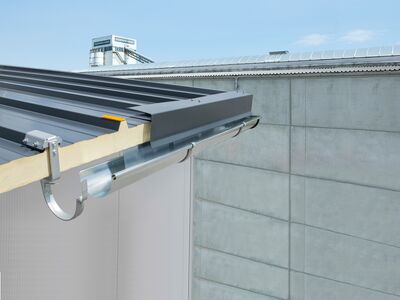

The gutter hook for sandwich panels is used to mount gutters on buildings covered with sandwich panels. Such panels are commonly used in industrial, hall, and commercial construction.

The gutter hook for sandwich panels has been specifically designed with features tailored to the requirements of sandwich panel roofs. It allows for the secure attachment of gutters to the outer shell of the sandwich panel, ensuring that precipitation is safely directed away from the roof surface through the roof drainage system.

The new standard for sandwich panel roofs.

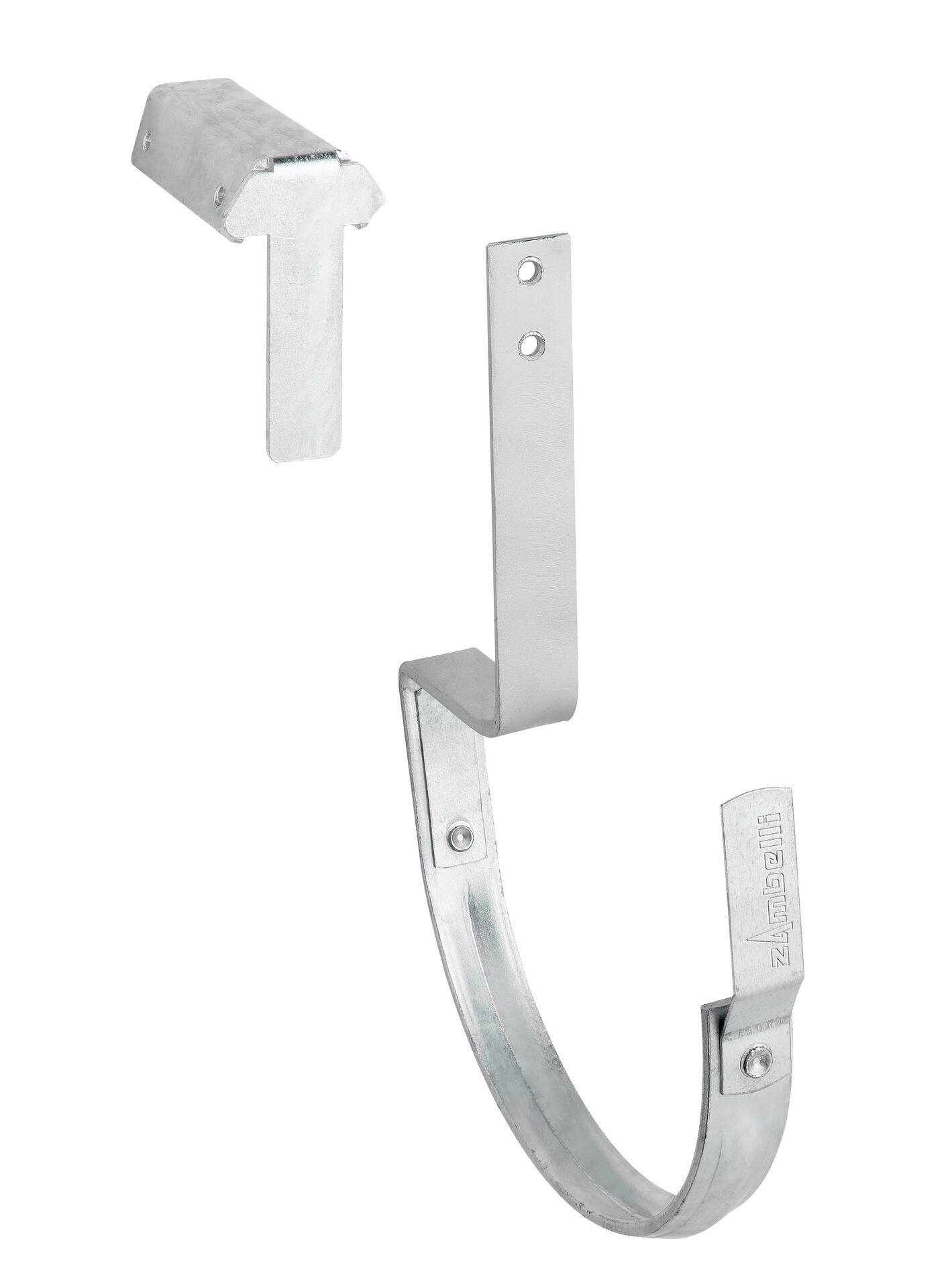

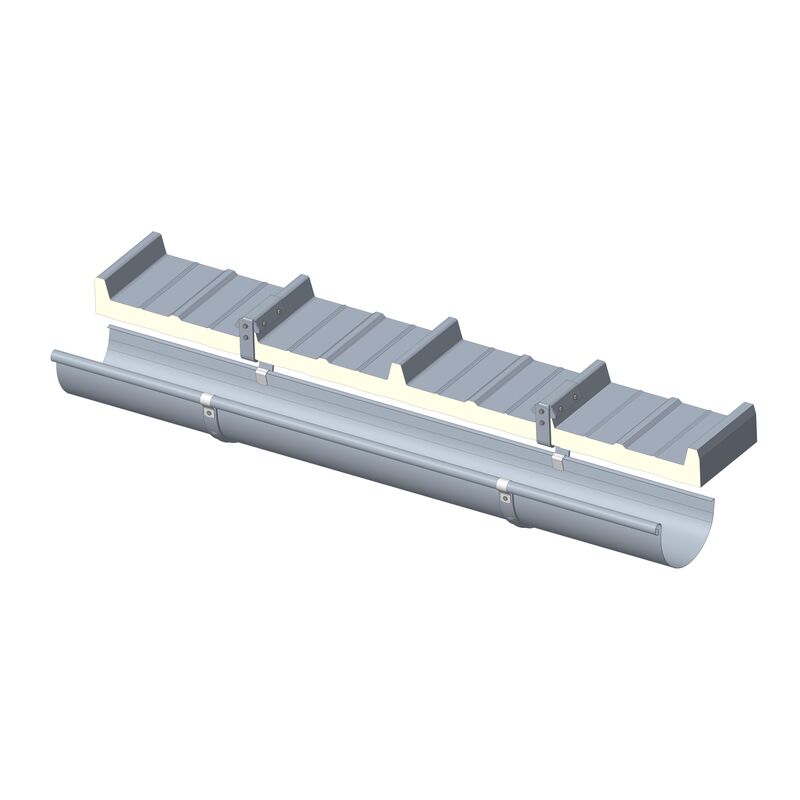

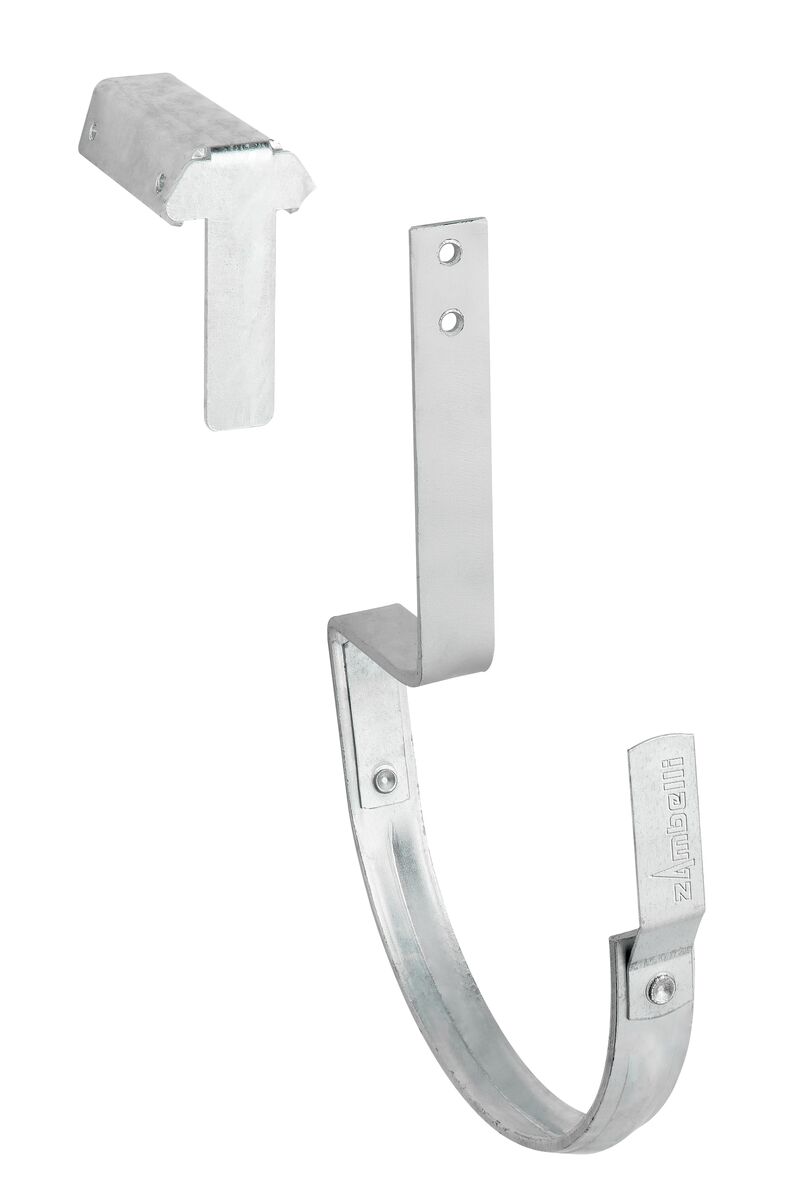

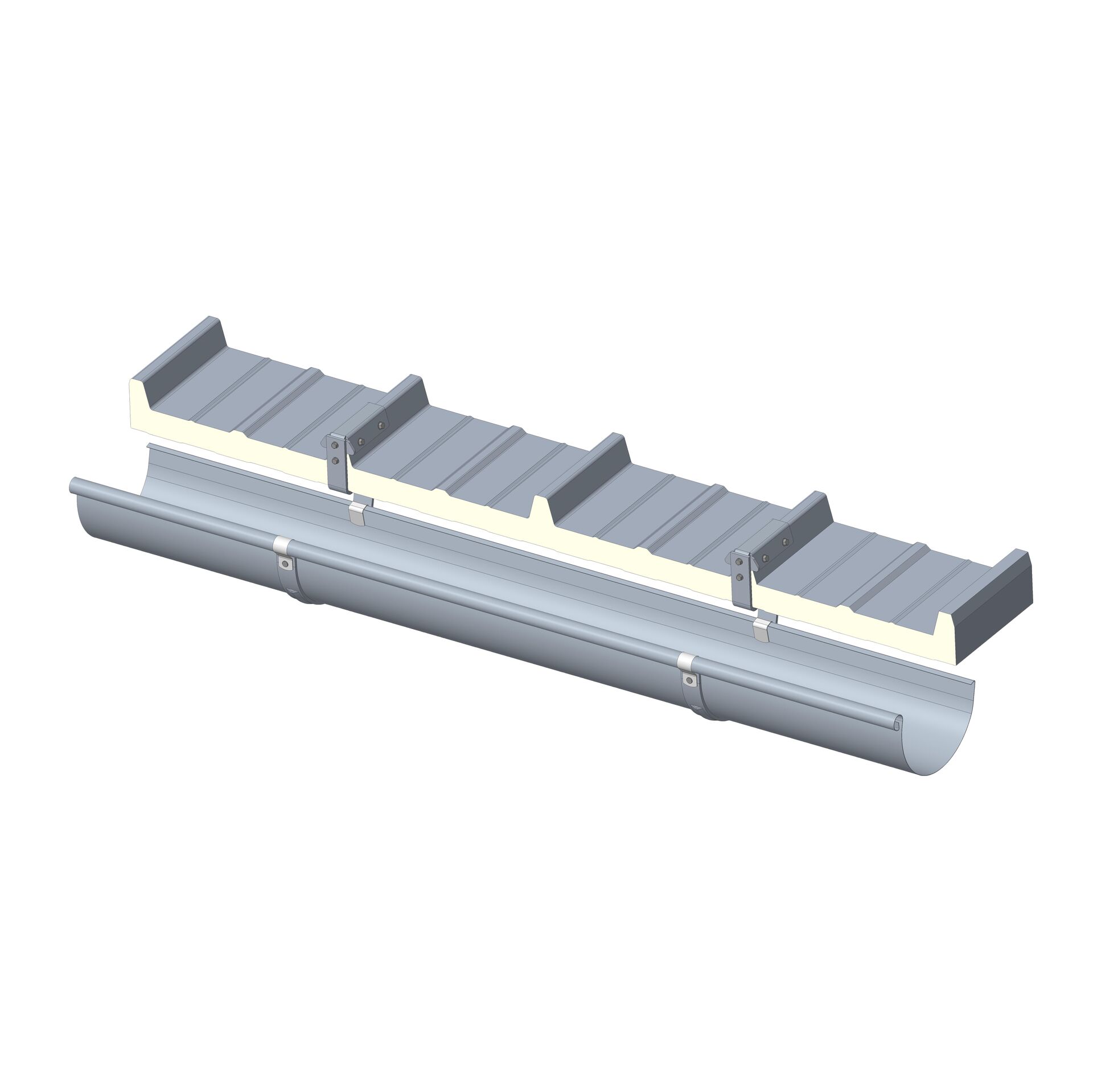

With its gutter hook set for sandwich panel roofs, Zambelli introduces a system designed for the most prevalent sandwich panels. The system comprises two components: an upper bracket holder (complete with pre-applied EPDM seal) and a gutter hook specifically shaped for selected sandwich panels. The package also includes all required screws. This application-optimized mounting solution ensures a swift, visually pleasing, and enduring installation, eliminating the need for intricate makeshift alternatives.

assets/images/e/20230711_0482_4-2-8653137e.jpg

QUICK & EASY TO A SUCCESSFUL SANDWICH PANEL PROJECT

Configure your custom sandwich panel gutter hook set now and experience the benefits of the Zambelli system solution.

START CONFIGURATION

PRACTICAL ADVANTAGES OF THE GUTTER HOOK SET.

  • Intuitive assembly concept with modular design for easy and error-free installation
  • Time and cost savings through quick assembly
  • Durability and stability due to high material quality
  • Corrosion, UV, and weather resistance according to standard norms
  • Homogeneous surface appearance thanks to innovative Plascoat® coating
  • No damage to the roof covering
  • Subsequent installation possible at any time
  • Versatility: available in various colors and designs for almost all sandwich panels and gutters
assets/images/6/20230711_0885_3-abcbd29b.jpg
3 lengths
0-160 mm core thickness
5°-15°
roof inclination
3 sizes
280 - 333 - 400

The gutter hook set in detail.

Sandwich panel profiles.

Compatible with the most prevalent sandwich panel profiles such as Kingspan - KS1000 RW, BRUCHAPaneel® DP 82 – DP 182, Roma Typ D, Fischer - FischerTherm®, Joris Ide Panels, Metecno - G4® etc.

Sizes.

Available in sizes 280 (7 pieces), 333 (6 pieces), and 400 (5 pieces)

Length variants.

Available in three length variations for core thicknesses of 0-60 mm, 80-100 mm, and 120-160 mm

Slope.

Installation possible with or without slope

Roof pitch.

Applicable for a roof pitch of 5° to 15° as a standard - further roof pitches possible through individual adjustment

Material.

Both components made from sustainable steel and coated with an innovative Plascoat® coating

Installation.

All holes pre-drilled

Accessories.

Optional: notched eaves panel and pressure-resistant height adjustment

Material & Surfaces.

Both the upper bracket holder and gutter hook are made from steel and coated with an innovative Plascoat® coating. The color variations of the Zambelli gutter hook set for sandwich panels are also made of steel. The Plascoat®-coated upper bracket holder and the gutter hooks are precisely powder-coated to match the Zambelli standard colors.

The corrosion protection used on the sandwich panel gutter hook is Plascoat® PPA 571 by Axalta. It is a thermoplastic powder coating. Plascoat® is designed to provide long-term corrosion protection for metal even in the most demanding environments. The coating is characterized by its durability, environmental friendliness, cost-effectiveness, and resilience.

Intuitive & Professional.

Thanks to the prefabricated system, the gutter hook set can be quickly installed without the need for elaborate makeshift solutions.

  • Installation with or without slope possible
  • No prior processing of the sandwich panel required
  • Manufacturer-approved even for panels with a cutback of up to 200 mm
  • Compliance with standards and expert regulations allows for a permissible distance between the special gutter hooks of up to 74 cm
Our recommendation.

We recommend installation with slope. For collision- and constraint-free installation, the roof overhang should be at least 100 mm.

The Zambelli Gutter Hook Set video guide.

Installation in Pictures.

Navigate through the installation of the gutter hook set for sandwich panels in just a few steps.

assets/images/0/20230711_0024_2-3c18216d.jpg
Step 1:The upper bracket holder is mounted on the trapezoidal crest.
assets/images/b/20230711_0184_2-ea32f063.jpg

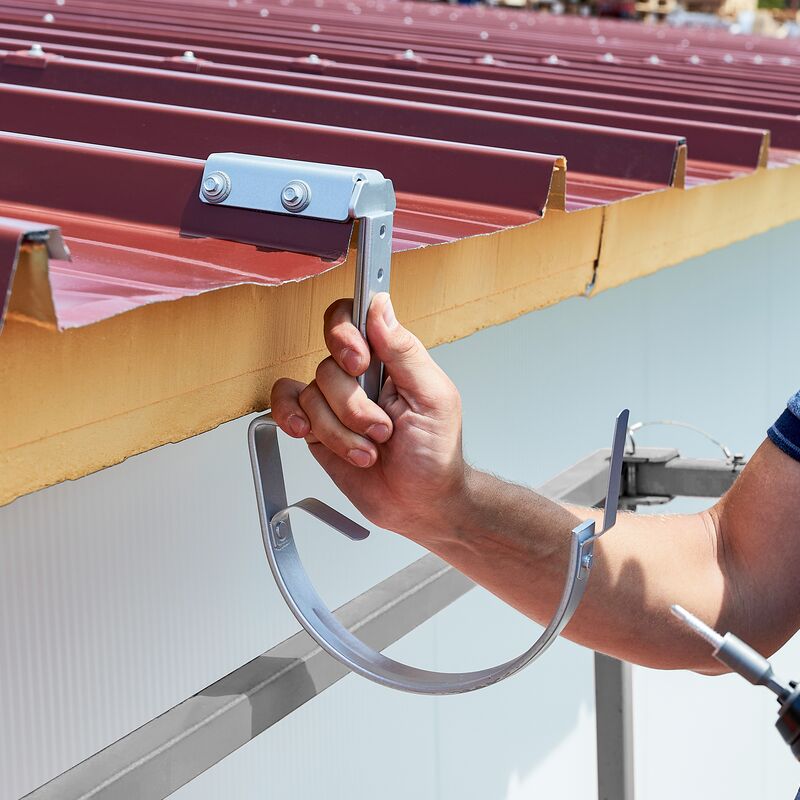

Step 2:The gutter hook is screwed to the tab of the upper bracket holder.
assets/images/4/20230711_0583_2_2-c2746915.jpg
Step 3:The gutter is placed into the installed gutter hooks.
assets/images/f/20230711_0628_2-0e4f0ea7.jpg
Step 4:The eaves panel is attached.
assets/images/b/20230711_0688_2-86736756.jpg
Step 5:An optional pressure-resistant height adjustment can be used to prevent corrugation in the splash plate.
assets/images/9/20230711_0885_3-b840ded3.jpg
Step 6:With the help of the Zambelli gutter hook set for sandwich panels, roof drainage on the sandwich panel roof was installed quickly, easily, and professionally.

Solutions for sheet metal work.

The Zambelli sheet metal concept includes eaves panel and splash plate. It has been developed to ensure proper sheet metalwork around the gutter inlet for sandwich panels.



EAVES PANEL: A CLEAN FINISH ON THE ROOF.

Due to the unique geometry of the special gutter hook, conventional eaves panels cannot be installed in the transition area between the sandwich panel and the gutter.

  • Special notched version by Zambelli
  • Optimal complement to the Zambelli gutter hook set
  • Strongly recommended for a neat drainage of precipitation into the gutter

SPLASH PLATE: PROTECTION & AESTHETICS FOR THE ROOF.

At the sandwich panel, a splash plate can also be installed. It prevents rainwater from overshooting the gutter during heavy precipitation, especially on steeper roofs.

  • Attachment to the upper brackets on the top of the sandwich panel
  • Subsequent installation possible at any time
  • Weather protection for the sandwich core
  • Visual component for the eave-sided roof termination
  • Pressure-resistant height adjustment (optionally available): Compensation for the level difference between the outer shell of the sandwich panel and the upper brackets to prevent corrugation in the splash plate

WITH THE SANDWICH PANEL GUTTER HOOK CONFIGURATOR.

The specially developed configurator provides an easy way to design your custom sandwich panel gutter hook set. From choosing the panel manufacturer to specifying panel thickness, material, color, coating, and gutter size, the configurator guides you through the process step by step.

Simplify your project and customize your gutter hook set according to your personal requirements – now with our smart online configurator!
